**Title: Unveiling the World of Insertion and Pipeline Flow Meters in Water Supply Networks**

In the realm of modern urban infrastructure, the water supply network stands as a cornerstone.

Its seamless and secure operation is the bedrock for sustaining the quality of life of residents

and fueling social and economic progress. At the heart of this network, flow meters emerge as

essential instruments, with the prime task of precisely gauging the water volume coursing

through pipelines. Among the diverse array of flow meter types, insertion flow meters and

pipeline flow meters have carved a niche for themselves in the water supply sector, courtesy

of their distinct advantages.

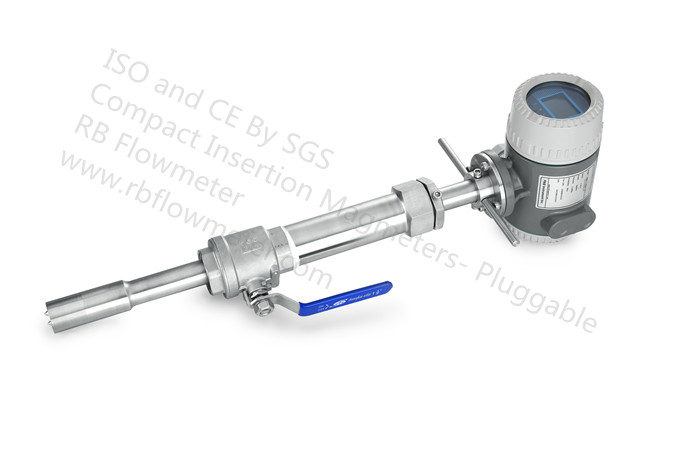

**Insertion Flow Meters: A Closer Look** - **Keywords**: Insertion Flow Meter, Structure, Point Flow Type, Runoff Type, Faraday's Law,

Electromagnetic Induction, Conductive Medium, Magnetic Field, Induced Voltage, Electrodes,

Stability, Reliability, Compact Design, No Moving Parts, No Flow Obstruction, Physical Parameter

Independence, Petroleum, Chemical, Metallurgy, Power, Papermaking, Food, Water Treatment,

Large-Diameter Pipeline, Installation, Pipeline Condition, Maintenance, Inspection, Cleaning,

Calibration. - Definition and Classification: Structurally classified, insertion flow meters encompass a variety

of types with different working principles, mainly bifurcated into point flow and runoff variants. - Working Principle: The insertion electromagnetic flow meter operates on Faraday's law of

electromagnetic induction. Here, the conductive medium in the measuring tube navigates

through

a constant magnetic field generated by two electromagnetic coils, spawning an induced voltage,

which is then measured by two electrodes within the pipeline.

- Performance Traits: They flaunt high stability, excellent reliability, a compact and lightweight build,

absence of moving and flow-obstructing parts, and measurement outcomes that remain unfazed by

multiple physical parameters. - Application Arenas: Their footprint spans across industries like petroleum, chemical engineering,

metallurgy, power generation, paper making, food processing, and water treatment. They are especially

apt for large-diameter pipeline flow measurement. - Installation and Upkeep: Installation demands a careful consideration of pipeline conditions to zero in

on the optimal position and method. Maintenance routines involve regular inspections, cleaning, and

calibration. **Pipeline Flow Meters: An Insight** - **Keywords**: Pipeline Flow Meter, Electromagnetic, Single-Chip Embedded, Digital Excitation, Flange

Connection, Conductive Liquid, Liquid-Solid Two-Phase, High Viscosity, Salts, Strong Acids, Strong Bases,

Chemical, Environmental, Metallurgy, Medicine, Papermaking, Water Supply and Drainage, Flow Interruption,

Straight Pipe Requirement, Inspection, Cleaning, Calibration. - Definition and Classification: A breed of electromagnetic flow meter, pipeline flow meters are engineered

to measure the volume flow of conductive media within a pipeline, leveraging single-chip embedded technology

for digital excitation. - Working Principle: Similar to insertion flow meters, it adheres to Faraday's law of electromagnetic induction.

However, it is an integral part of the pipeline and typically necessitates flange connection. - Performance Highlights: Beyond general conductive liquid flow measurement, they can handle liquid-solid

two-phase flows, high-viscosity liquids, and the volume flow of salt, strong acid, and strong alkali liquids. - Usage Sectors: They find extensive use in chemical engineering, environmental protection, metallurgy, medicine,

paper making, and water supply and drainage departments. - Installation and Care: Installation often requires flow interruption and has a higher bar for straight pipe sections.

Maintenance entails regular checks, cleaning, and calibration. By delving into the nuances of these two flow meter types, we inch closer to making informed decisions in the

selection process for water supply networks, optimizing their functionality and longevity.

**Title: Comparative Analysis of Insertion and Pipeline Flow Meters** In the domain of industrial fluid measurement, the selection of flow meters holds significant importance. Insertion flow meters

and pipeline flow meters are two common types, each possessing distinct characteristics in terms of installation method,

measurement accuracy, application range, maintenance convenience, and cost. **Keywords**: Insertion Flow Meter, Pipeline Flow Meter, Installation Method, Measurement Accuracy, Application Range,

Maintenance Convenience, Cost, Fluid Measurement, Sensor, Pipe Modification, Measurement Error, Large-Diameter Pipe,

Special Environment, Small-Diameter Pipe, Medium-Diameter Pipe, Disassembly, Replacement, Cost-Effectiveness. **2.1 Installation Method** The installation of insertion flow meters is relatively straightforward. It doesn't require cutting the pipeline; instead, a hole is

made in the pipe, and the sensor is inserted. This installation approach minimizes pipeline modification work and eases the

installation process. Notably, in scenarios where production cannot be halted, insertion flow meters can perform hot-tapping,

enabling rapid installation. In contrast, the installation of pipeline flow meters is far more complex. It demands the installation

of the flow meter in the middle of the pipeline, often involving pipe cutting and welding. This installation method is not only

time-consuming and labor-intensive but also necessitates production shutdown during installation, thereby affecting production. **2.2 Measurement Accuracy** Regarding measurement accuracy, pipeline flow meters generally outperform insertion flow meters. The design of pipeline flow

meters allows the sensor to integrate with the pipeline as a whole, reducing measurement errors and enhancing measurement

precision. For instance, some pipeline flow meters can achieve a measurement accuracy of 0.5 class. Conversely, insertion flow

meters have a relatively lower measurement accuracy, typically around 2.5 class. This is because the sensor inserted into the

pipeline interior might be influenced by the fluid flow state within the pipe, leading to measurement errors. **2.3 Application Range** Insertion flow meters are particularly suitable for flow measurement in large-diameter pipelines. Thanks to their small sensor size,

they can be easily inserted into large-diameter pipes for measurement. Additionally, insertion flow meters are applicable in special

environments where it is difficult to install pipeline flow meters. Pipeline flow meters, on the other hand, are suitable for various

pipe diameters, ranging from small to medium. This renders pipeline flow meters widely valuable in multiple application scenarios. **2.4 Maintenance Convenience** In terms of maintenance, insertion flow meters have a clear edge. Their sensor parts are easy to disassemble and replace, facilitating

regular maintenance and cleaning. Moreover, the maintenance of insertion flow meters doesn't disrupt the normal operation of the

system. The maintenance of pipeline flow meters is more complicated. Due to its compact structure, partial pipeline removal might

be required during maintenance, affecting production. Simultaneously, professional technicians might be needed for the maintenance

operation. **2.5 Cost** Concerning cost, insertion flow meters are usually lower than pipeline flow meters. Especially for large-diameter pipelines, insertion

flow meters offer higher cost-effectiveness. This is mainly because of their simple installation, which reduces pipeline modification

expenses. Pipeline flow meters, due to their complex installation process and high-precision requirements, have a relatively higher

cost. Additionally, the maintenance cost of pipeline flow meters may also be higher than that of insertion flow meters. In summary, both insertion and pipeline flow meters have their own advantages. Insertion flow meters excel in installation simplicity,

maintenance convenience, and cost, especially for large-diameter pipelines. Pipeline flow meters, however, perform better in

measurement accuracy and are suitable for various pipe diameters. In practical applications, the appropriate flow meter should be

selected based on specific requirements, installation conditions, maintenance needs, and cost budgets.
